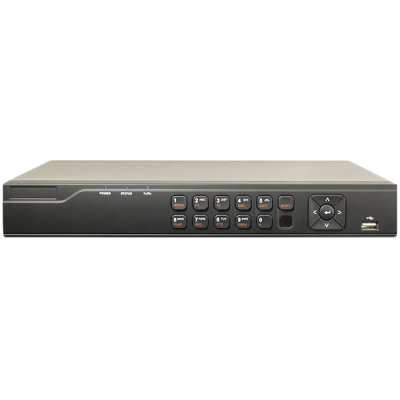

LTN8704-HT
LTN8704-HT

LTN8704-HT

Add a review.

Hybrid NVR (4CH Analog+4CH IP), H.264 video compression, Third-party network cameras supported, Up to 5 Megapixels resolution recording, HDMI and VGA output at up to 1920×1080P resolution, 4-ch synchronous playback, HDD quota and group management.

Category:

Description

  • 4 Channel Hybrid Network Video Recorder
  • Video Input: 4CH Analog+4CH IP (20Mbps)

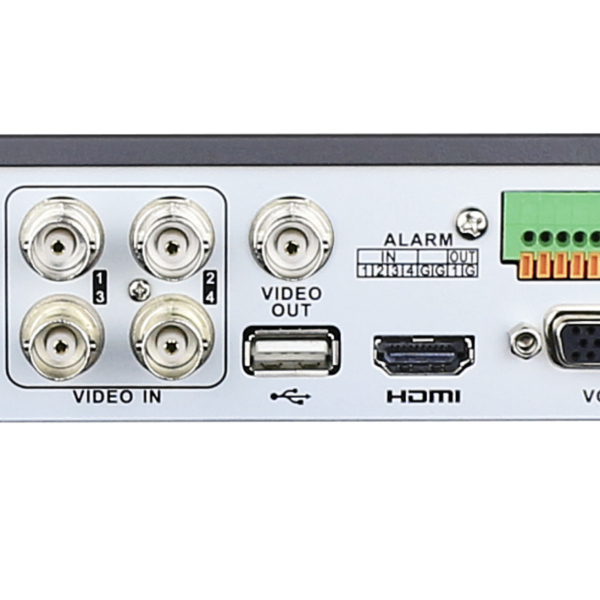

  • Video Output: BNC, VGA/ HDMI up to 1920x1080P
  • Recording Resolution: Up to 5MP Resolution (2560×1920)
  • Playback Channel: 4CH
  • Playback Resolution: Up to 5MP Resolution (2560×1920)
  • Audio In/Out: 4CH/ 1CH, RCA
  • Network: 10/100/1000M
  • Storage: 1 SATA up to 4TB, 2 USB 2.0
  • Support POS #: 1
Recorder Series Platinum Series
Recorder Channel 4-Channel
Recorder Case Compact Case
Recorder Technology Hybrid NVR
Featured Product No
Video No
Specifications
Video / Audio input
Video compression H.264
Analog video input 4-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP video input 4-ch
Composite video input Up to 8-ch (Analog video + IP video)
Audio compression G.711
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input)
Video / Audio output
HDMI / VGA output 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 H
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolution(Analog) Main stream: 4CIF / 2CIF / CIF / QCIF, Sub-stream: CIF / QCIF
Frame rate(Analog) Main stream: 25 fps (P) / 30 fps (N), Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 3 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Playback resolution 5 Megapixels /3 Megapixels / 1080P / UXGA / 720P / 4CIF / VGA / DCF / 2CIF / CIF / QCIF
Synchronous playback 4 -ch
Hard disk
SATA 1 SATA interface
Capacity Up to 4TB for each disk

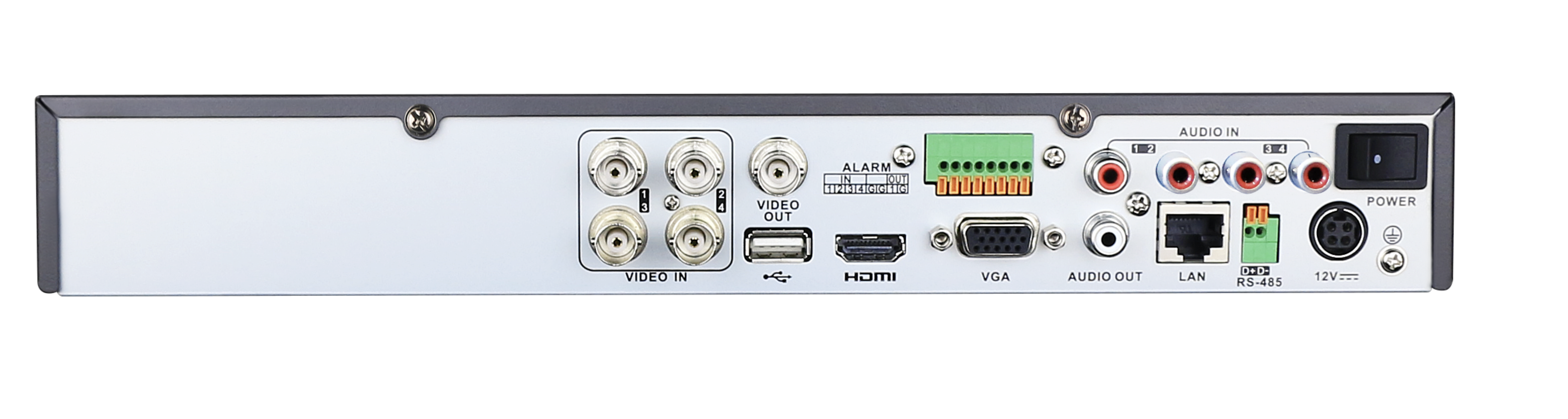

External interface
Network interface 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
General
Power supply 12 VDC
Power Consumption ≤ 10 W (without hard disk or DVD-R/W)
Working temperature 14°F~131°F(-10 °C ~ +55 °C)
Working humidity 10% ~ 90%
Dimension  12.4” x 8.8” x 1.8” (315.0 x 224.0 x 45.0mm)
Weight ≤4.4lb(2 Kg ) ( without hard disk or DVD-R/W )
